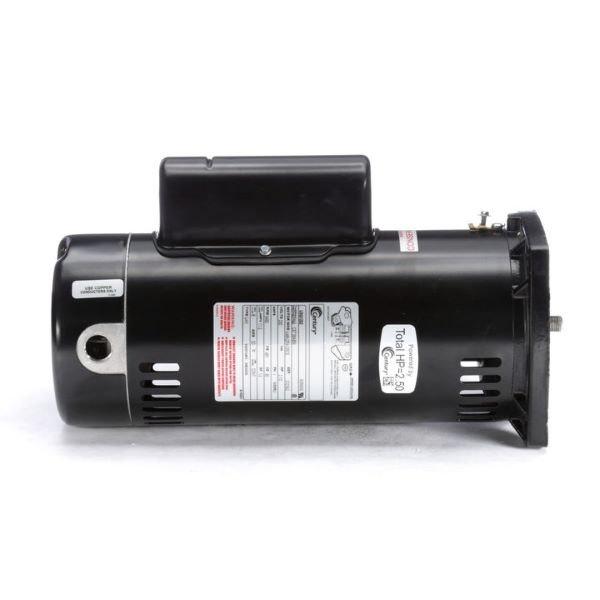

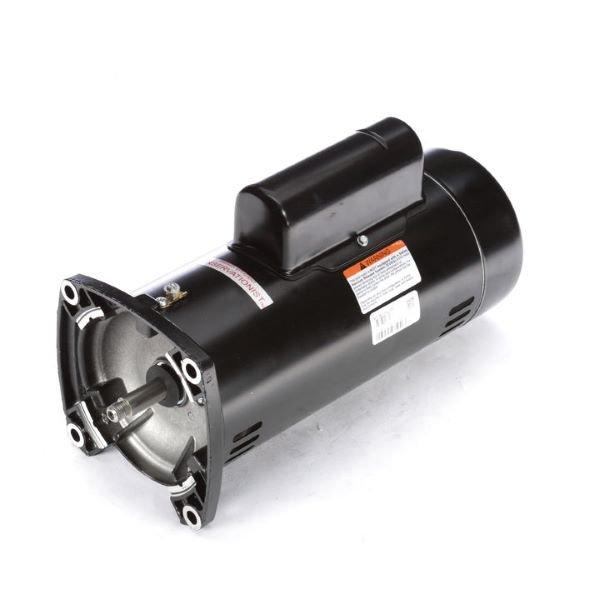

Century A.O. Smith - 48Y Square Flange 2-1/2 HP Up-Rated Pool Filter Motor, 11.2A 230V

Item No. 620117 | Manufacturer SKU: USQ1252
Item No. 620117 | Manufacturer SKU: USQ1252
Century A.O Smith  48Y Square Flange 2-1/2 HP Up-Rated Pool Filter Motor 11.2A 230V
Century A.O Smith  48Y Square Flange 2-1/2 HP Up-Rated Pool Filter Motor 11.2A 230V
Century A.O Smith  48Y Square Flange 2-1/2 HP Up-Rated Pool Filter Motor 11.2A 230V
Century A.O Smith  48Y Square Flange 2-1/2 HP Up-Rated Pool Filter Motor 11.2A 230V
Century A.O Smith  48Y Square Flange 2-1/2 HP Up-Rated Pool Filter Motor 11.2A 230V Century A.O Smith  48Y Square Flange 2-1/2 HP Up-Rated Pool Filter Motor 11.2A 230V Century A.O Smith  48Y Square Flange 2-1/2 HP Up-Rated Pool Filter Motor 11.2A 230V Century A.O Smith  48Y Square Flange 2-1/2 HP Up-Rated Pool Filter Motor 11.2A 230V
$559.99

The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design. More Details
How to get it
Store Pickup Pickup In Store

The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design.
  • Auto Protector
  • Capacitor Start
  • Class B Insulation
  • Open Dripproof
  • Rotation: CCW Pump End
  • 303 Stainless Steel Threaded Shaft
  • Sealed Ball Bearings
  • 50 C Ambient
  • 60 Hertz
  • UL1081

The A.O. Smith Two-Compartment Square Flange Pool Filter Motor works efficiently with its single-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start is run using a ?Conservationist?? motor for enhanced performance. With horsepower ratings ranging from 1/2"P to 3HP, the Two-Compartment Square Flange Pool Filter Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance. Used on many Sta-Rite, Red Jacket, Pac Fab and American products, it's the perfect addition to your filter pump system for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Filter Motor is sure to last.

Single Phase
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
Different Frame Types
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
Energy Efficiency
This motor operates at a higher efficiency level than standard efficiency motors. Its aggressive stamina comes from durable bearings and smaller, increased aerodynamic cooling fans that work to eliminate failure rates and unnecessary energy expenditures, ultimately reducing high operating costs

Phase Type: Single Phase
Shaft Type: Threaded
Energy Efficiency: High Energy Efficiency
Installation Type: Residential
Horsepower: 2-1/2 HP
Flange Type: Square Flange
Voltage: 230V
Service Factor: 1.00 - 1.25
Speed Settings: Single Speed
Rating Type: Up-Rated
Product Type: Pool Motor
Motor Frame: 48 Frame
Compatible Pumps: SP3220X25
Compatible Pumps: PHPM2.5
Compatible Pumps: 011520
Compatible Pumps: PEAA5G
Compatible Pumps: PEAA6G
Compatible Pumps: P4EAA6GL
Compatible Pumps: P6EAA6G-208L
Manufacturer: Century A.O. Smith
Warranty: 1-Year

One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
